CR17505 2800mAh 3.0V
Product Characteristics:
● High and stable working voltage platform of disposable lithium manganese cylindrical battery;
● The energy density is 3-10 times greater than that of non-lithium batteries;
● Wide operating temperature range;
● Self-discharge rate low room temperature storage self-discharge rate <1%/ year;
● Lithium-manganese cylindrical battery with long life, 20℃ storage after 10 years still has 90% capacity;
● Good safety performance, lithium battery manufacturers through UL, UN38.3, CE and RoHS safety tests;
● Medical equipment battery green environmental protection, does not contain any toxic, harmful substances.
● Battery surface clean, no electrolyte leakage, no obvious scratches and mechanical damage, no deformation,no other appearance defects affecting the value of the battery.
Product Details
Product Parameters
| Nominal Capacity(mAh): | 2800mAh | Nominal Voltage (V): | 3V |
| Maximium Size(mm): | Φ17.0*50.5 | Weight (g): | 28g |
| Discharging cut-off Voltage (V): | 1.5V | Nominal Discharge Current(mA): | 20mA |
| Maximium Continuous Discharge Current(mA): | 2000mA | Maximium Pulse Discharge | 4000mA |
| Work Temperature Range: | -40 ~70℃ | Battery Charging : | No |

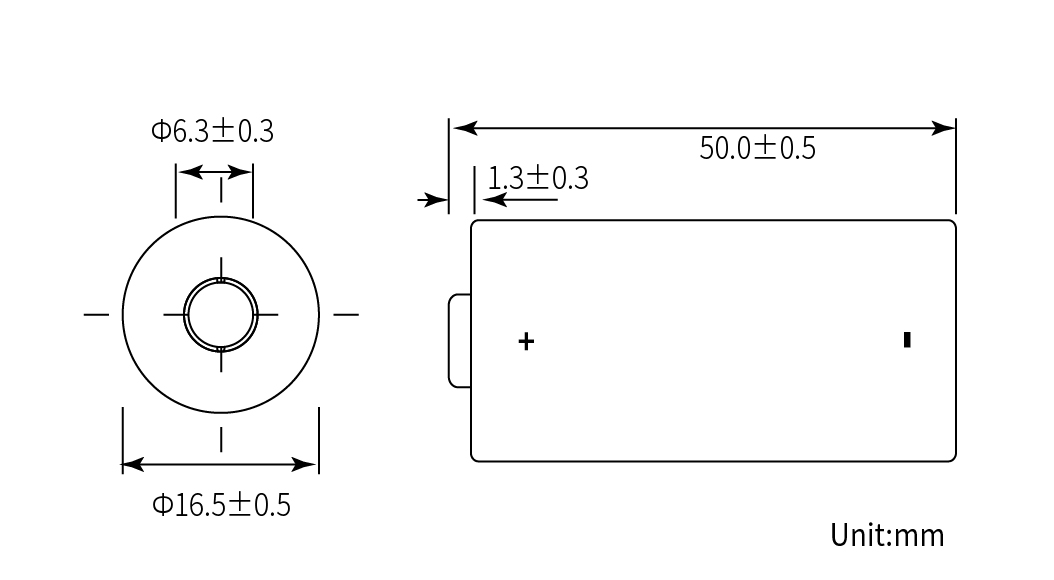

Product Dimensions
Product Catalog
| China Model | Universal model | Rated capacity(mAh) | Voltage(V) | Dimensions(mm) | Weigth(g) | Standard discharge current(mA) | Maximum discharge current(mA) | Temperature range(℃) | |
|---|---|---|---|---|---|---|---|---|---|
| Continuous | pulse | ||||||||
| CR14250 | 1/2AA | 800 | 3V | φ14.5*25.0 | 9g | 5mA | 800mA | 1500mA | -40 ~70℃ |
| CR14505 | AA | 1600 | 3V | φ14.5*50.5 | 17g | 20mA | 1500mA | 2000mA | -40 ~70℃ |
| CR15270 | CR2 | 1000 | 3V | φ15.6*27.0 | 11g | 20mA | 1000mA | 2000mA | -40 ~70℃ |
| CR17345 | CR123A | 1700 | 3V | φ17.0*34.5 | 16g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| CR17345 | CR123A | 1500 | 3V | φ17.0*34.5 | 16g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| CR17450 | CRAG | 2400 | 3V | φ17.0*45.0 | 24g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| CR17505 | A | 2800 | 3V | φ17.0*50.5 | 28g | 5mA | 2000mA | 4000mA | -40 ~70℃ |
| CR18505 | A | 3000 | 3V | φ18.0*49.5 | 30g | 5mA | 2200mA | 3000mA | -40 ~70℃ |
| CR18650 | CR18650 | 4000 | 3V | φ18.0*65.0 | 28g | 20mA | 3500mA | 5000mA | -40 ~70℃ |
| CR26500 | C | 5400 | 3V | φ26.2*50.5 | 62g | 5mA | 2000mA | 3000mA | -40 ~70℃ |
| CR34615 | D | 12000 | 3V | φ34.2*61.5 | 125g | 10mA | 2500mA | 3000mA | -40 ~70℃ |
| CR09080 | CR09080 | 80 | 3V | φ9.8*8.5 | 3.3g | 8mA | 50mA | 80mA | -40 ~70℃ |
| CR10107 | CR10107 | 120 | 3V | φ10.3*10.7 | 2.9g | 10mA | 80mA | 120mA | -40 ~70℃ |
| CR11108 | CR-1/3N | 170 | 3V | φ11.6*10.8 | 3g | 3mA | 80mA | 160mA | -40 ~70℃ |
| CR123AT | CR123A | 1600 | 3V | φ17.0*34.5 | 16g | 20mA | 1500mA | 3000mA | -40 ~85℃ |
| CR17450T | CRAG | 2400 | 3V | φ17.0*45.0 | 24g | 20mA | 1500mA | 3000mA | -40 ~85℃ |
| 2CR17345 | 2CR5 | 1700 | 6V | 16.7*44.7*33.8 | 38g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| 2CR17345 | 2CR5 | 1500 | 6V | 16.7*44.7*33.8 | 38g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| 2CR17345 | CR-P2 | 1700 | 6V | 19.5*36.0*33.4 | 38g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| 2CR17345 | CR-P2 | 1500 | 6V | 19.5*36.0*33.4 | 38g | 20mA | 1500mA | 3000mA | -40 ~70℃ |
| CR9V | CR 9V | 800 | 9V | 16.1*48.8*26.0 | 40g | 5mA | 800mA | 1500mA | -40 ~70℃ |
| CRV3 | CRV3 | 3200 | 3V | 14.5*52.5*29.0 | 38g | 20mA | 80mA | 3000mA | -40 ~70℃ |
| 2CR11108 | 2CR1/3N | 170 | 6V | φ11.9*22.0 | 6g | 3mA | 80mA | 160mA | -40 ~70℃ |
Product Applications

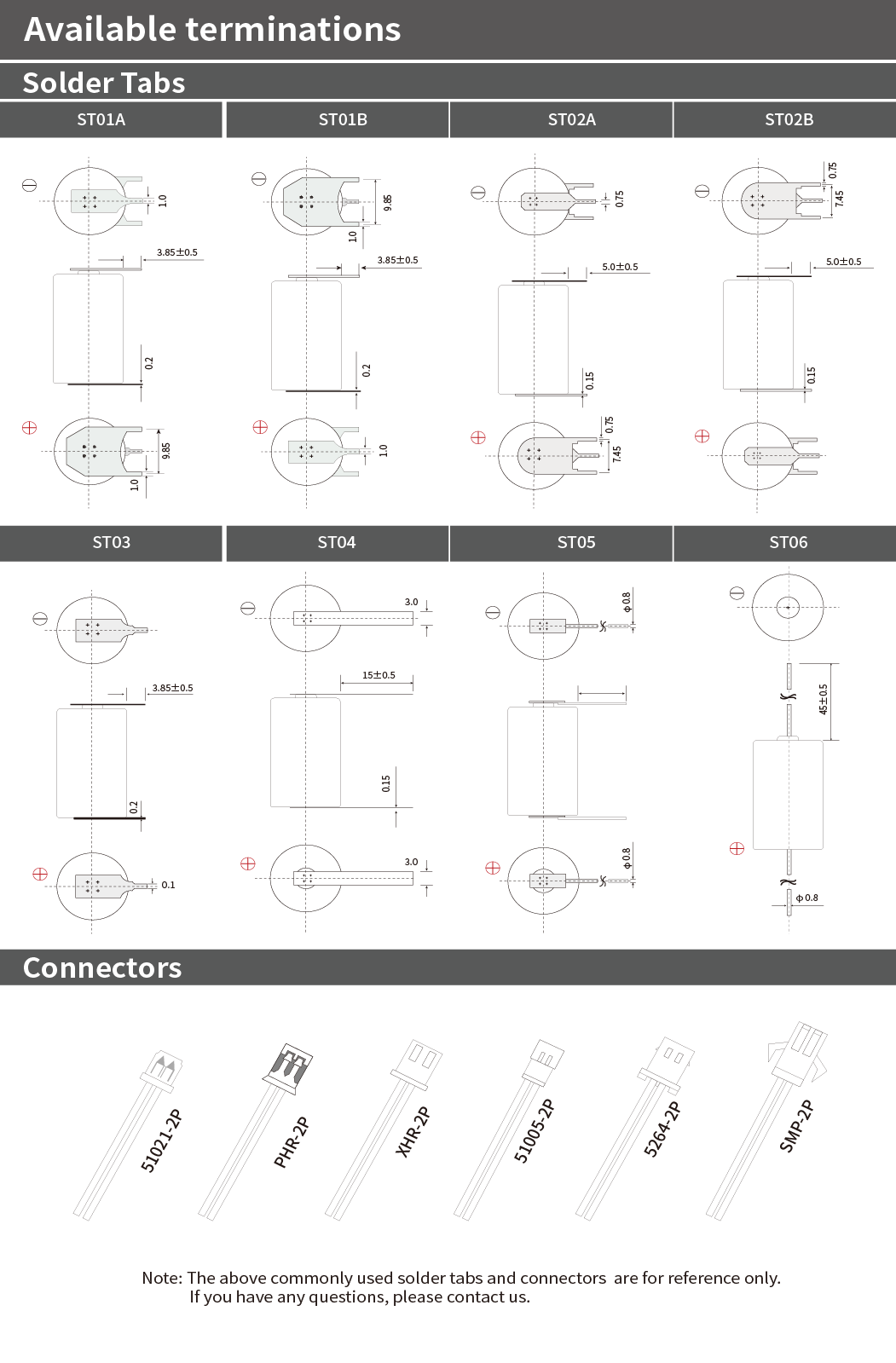

Product Available Terminations
Features
● High and stable working voltage platform of disposable lithium manganese cylindrical battery;
● The energy density is 3-10 times greater than that of non-lithium batteries;
● Wide operating temperature range;
● Self-discharge rate low room temperature storage self-discharge rate <1%/ year;
● Lithium-manganese cylindrical battery with long life, 20℃ storage after 10 years still has 90% capacity;
● Good safety performance, lithium battery manufacturers through UL, UN38.3, CE and RoHS safety tests;
● Green environmental protection, does not contain any toxic, harmful substances.
● Battery surface clean, no electrolyte leakage, no obvious scratches and mechanical damage, no deformation, no other appearance defects affecting
